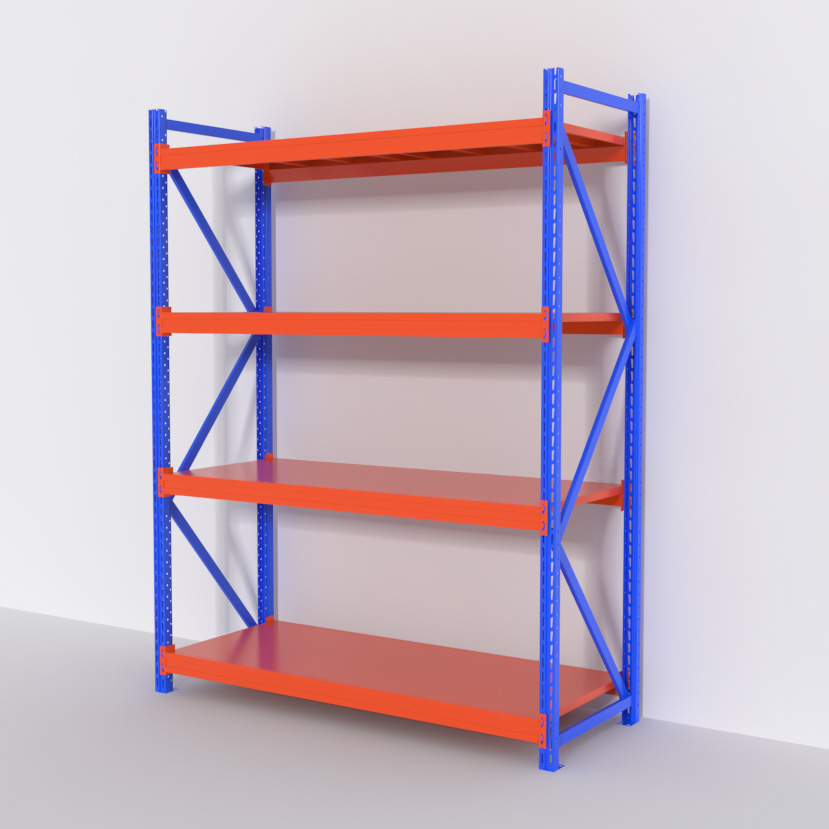

| RD-9# 1000 KG Specification Overview | |
|---|---|
| Load Capacity | 1000KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour Options | Gray white / Sand blue / Customizable |
| Standard Dimensions |
L: 1200 / 1500 / 2000 mm W: 450 / 600 mm H: 2000 / 2500 mm |
| Load / KG | Laminate Thickness | Column Specification | Crossbeam Specifications |
|---|---|---|---|
| 100 KG | 0.30 mm | 50*25*0.5 mm | 50*30*0.5 mm |
| 200 KG | 0.35 mm | 70*35*0.7 mm | 60*35*0.6 mm |
| 300 KG | 0.50 mm | 60*30*1.0 mm | 70*33*1.0 mm |
| 600 KG | 0.50 mm | 70*33*1.4 mm | 70*35*1.2 mm |
In order to have a better understanding of our product, please allow us to remind you with the following three tips:
