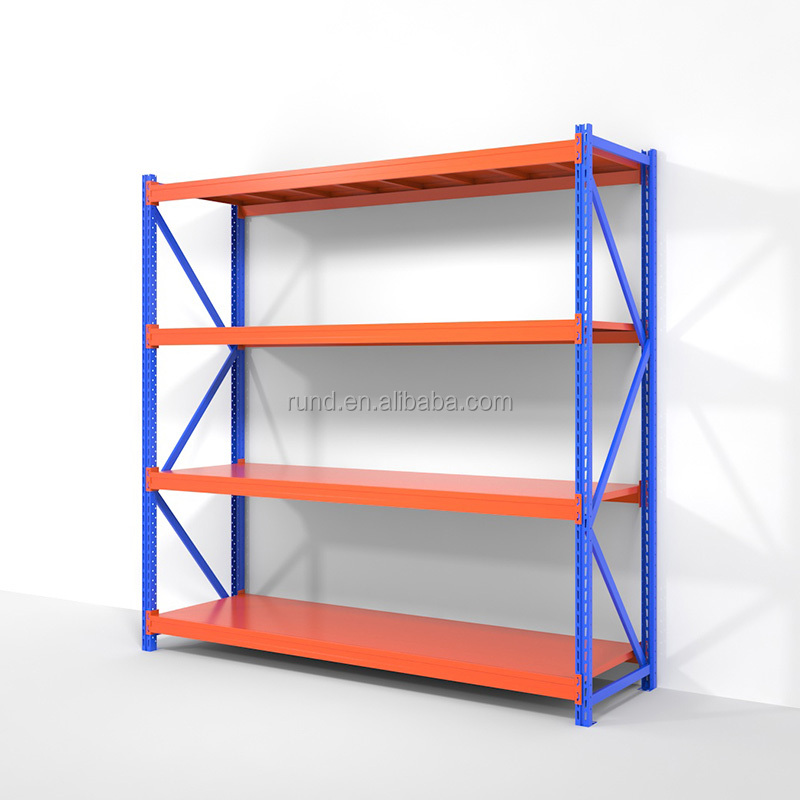

| RD-9# 1000 KG Specifications | |
|---|---|
| Load capacity | 1000KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour | Gray white / Sand blue / Customizable |
| Specifications |
Length: 1200 / 1500 / 2000 mm Width: 450 / 600 mm Height: 2000 / 2500 mm |
Notice on Freight:
The generated transportation costs on the page significantly differ from the actual transportation costs. Please contact customer service with the product model, specifications, quantity, and delivery address to obtain an accurate shipping quote.
If you have a Chinese freight agent, we can provide container loading and short-term storage services.
| Load / KG | Laminate thickness | Column specification | Crossbeam specifications |
|---|---|---|---|
| 100KG | 0.30 mm | 50*25*0.5 mm | 50*30*0.5 mm |
| 200KG | 0.35 mm | 70*35*0.7 mm | 60*35*0.6 mm |
| 300KG | 0.50 mm | 60*30*1.0 mm | 70*33*1.0 mm |
| 600KG | 0.50 mm | 70*33*1.4 mm | 70*35*1.2 mm |
The standard configuration supports up to 1000KG per layer. We also support alternative configurations ranging from 100KG, 200KG, 300KG, to 600KG capacities depending on your shelf board thickness and beam profiles.
Yes. Although the standard configuration comes with 4 layers, the number of layers as well as dimensions (Length: 1200/1500/2000mm, Width: 450/600mm, Height: 2000/2500mm) can be fully customized to meet your spacing requirements.
Our primary color selections are Gray white and Sand blue. However, customized color adjustments are fully supported to adapt to your brand identity.
Online freight estimators often calculate rates using generalized parcel estimates. For large-volume racking materials, we highly recommend providing your exact delivery address and quantity to our customer service so we can calculate an accurate, optimal cargo freight quote.
Yes. If you have your own Chinese freight forwarder/agent, we can coordinate with them to offer container loading arrangements and short-term warehouse storage services at our facilities.

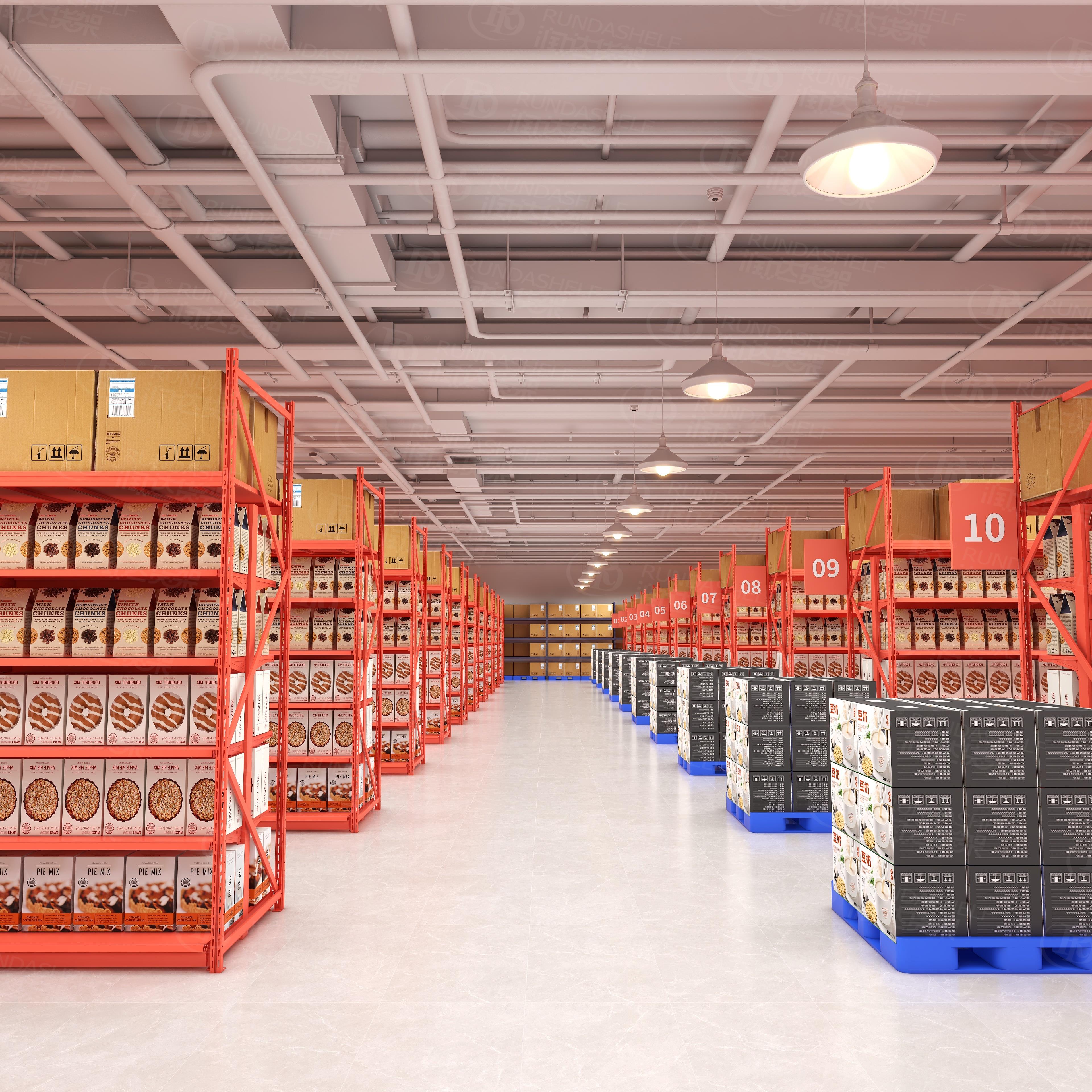

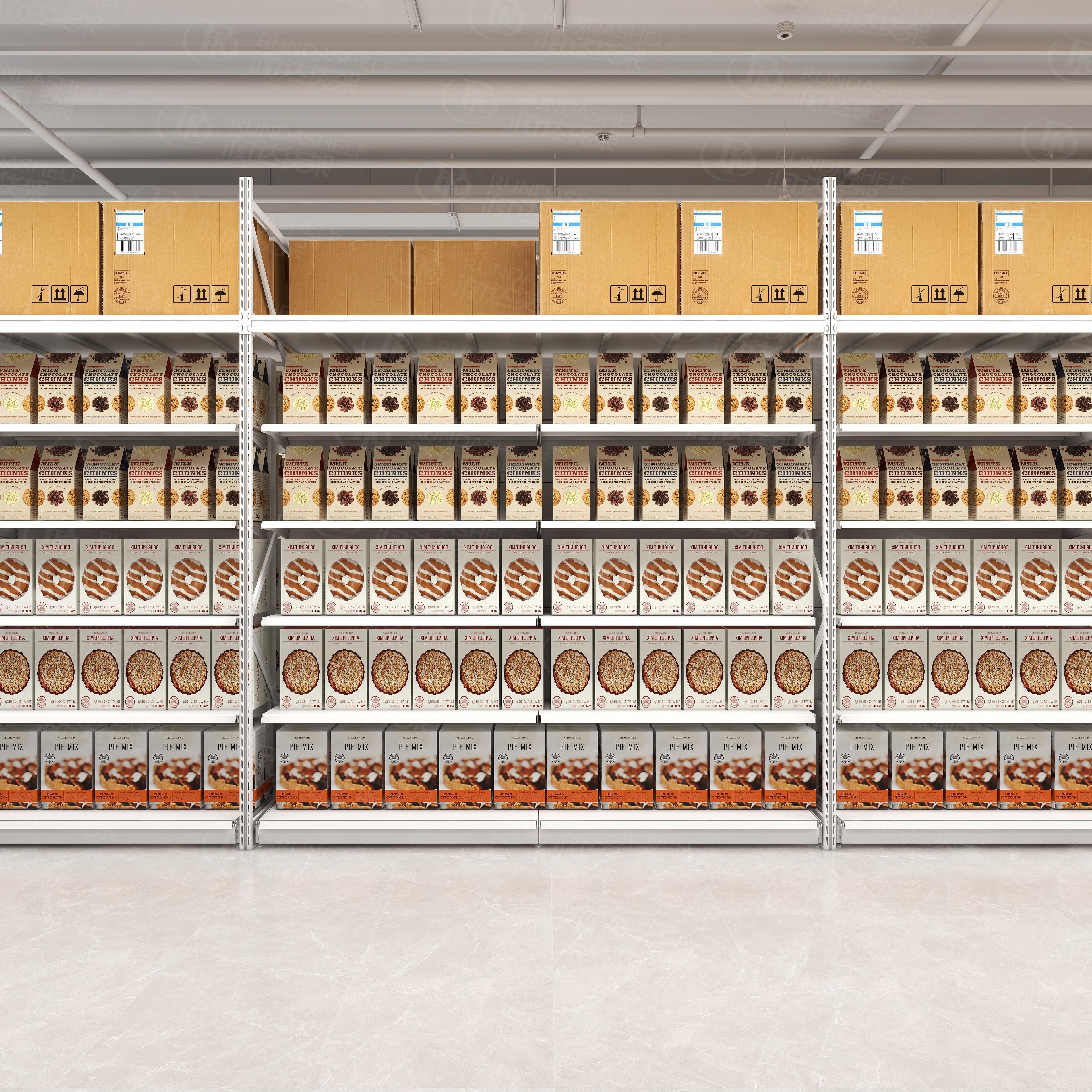

We provide comprehensive design and production services for a wide variety of storage structures, including warehouse storage racks, supermarket shelving units, mezzanine platforms, and specialty mobile growing frames.
